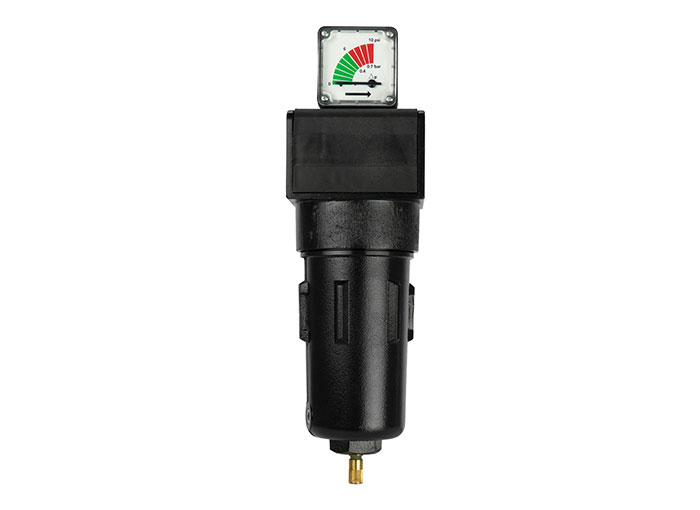

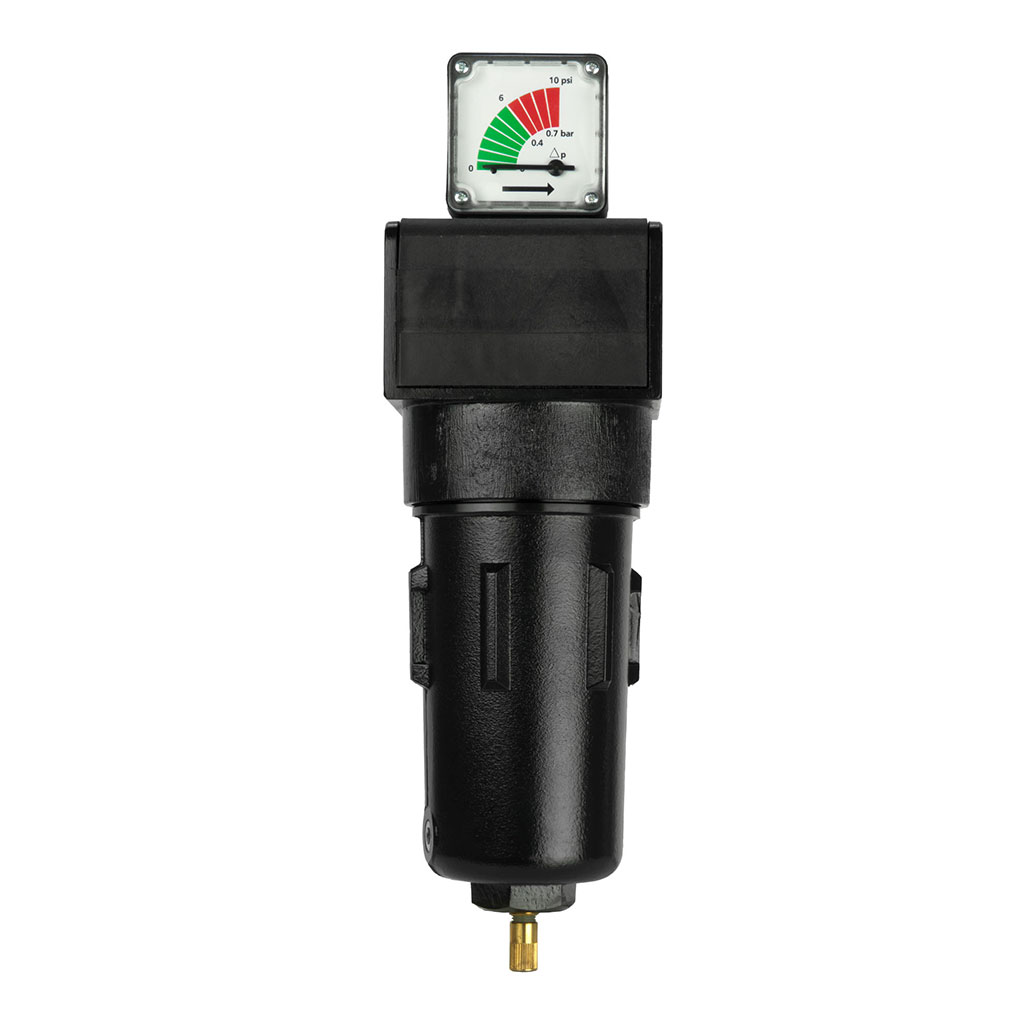

AIR FILTER
MODEL: 019-0331X
1/2 in. High Efficiency Compressed Air Filter
- SCFM Flow = 65
- Maximum Inlet Pressure = 232 PSI
- 1 micron particle removal - 0.1 PPM oil carry over
- The inner stainless steel support is anti-corrosive, so no rust will get in the lines
- Deep bed borosilicate glass microfiber multi-wrap within the filter element prevents high pressure drop and allows for high oil removal efficiencies
- Pressure drop - clean and dry 1.0 PSI
- Pressure drop saturated 2.0 PSI exterior allows a unique coalescing action to quickly drain oil
- The polyester needle felt sleeve on the element exterior allows a unique coalescing action to quickly drain oil
- Differential pressure gauge for easy read when to change the internal filtration element
- Only a 4-7 clearance is required for element removal
